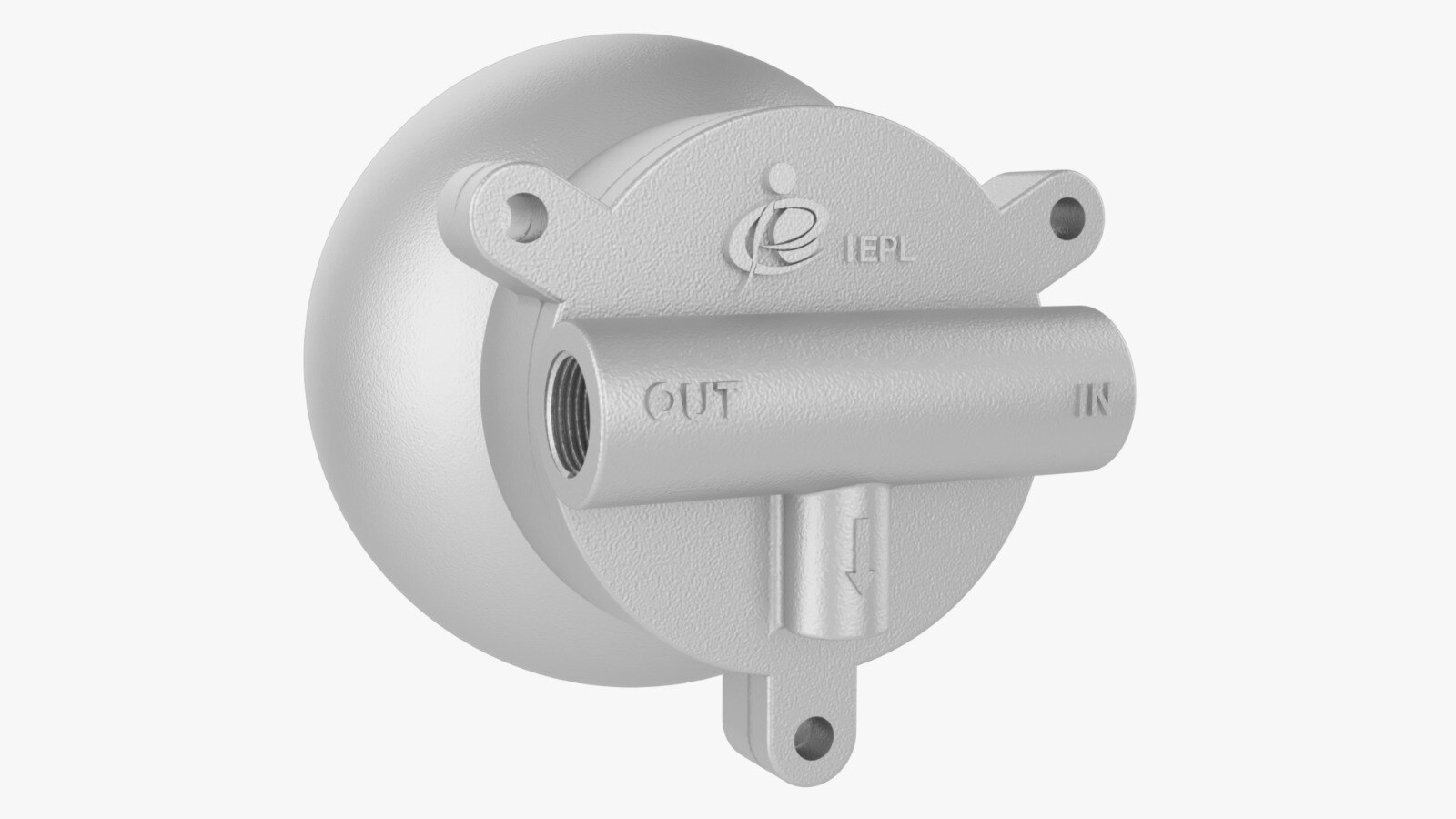

Venturi Float Steam Trap Manufacturers We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal Venturi Float Steam Trap Main function of any steam trap is to trap the steam and drain out the condensate water. In industry there are many types of steam trap like thermodynamic trap, float trap, inverted bucket trap& Venturi Orifice steam trap. There is huge difference in working principle of our VENTURI FLOAT Steam trap and other steam traps. There are mainly two issues in process plant in steam traps. 1. Traps fail in open condition (Occur mostly in TD steam trap): Wasting of steam, boiler feed water and treatment chemicals Also increases back pressure on all other traps so stalling the condensate in other trap which leads to increases Process time. 2. Traps fail in closed condition so backing up condensate causing (Occur mostly in Float and Bucket steam trap): Open bypass so loss of steam Required Plant shut down and loss of production Water hammering in steam system and so plant damaged. Note: In float trap which are with SLR ( without thermostatic vent) there are permanent steam loss through SLR. All these problems are eliminated in our Venturi float Steam trap due to there are Venturi and float two orifice are in working. Working Principle: 1) Casing (wcb/ss304) 2) Cover plate(wcb/ss304) 3) ss316 Ball Float 4) ss316 Float Nozzle 5) Venturi orifice with filter Technical specification: BODY DESIGN CONDITIONS Maximum Operating Pressure (Kg/cm2) - 8 Maximum operating temperature (0c) - 170 Hyd. Test (Kg/cm2) - 16 Available in 15NB, 25NB, 40NB & 50NB Advantages and Benefits • No SLR so no steam wastage due to miss setting of SLR. ( Payback period one month only) • Permanent steam savings about 10 to 45%. • Increased heat transfer typically 10%. • Unaffected by thermal shock or water hammer so increasing plant life. • Low cost compare to thermostatic vent steam trap • Two orifice mechanism control condensate flow at all level. • Built in vent for quick start up so fast warm up of machine/system. • CO2 emissions are reduced through reducing steam consumption and boiler fuel usage. • Save water and water treatment chemicals. Application: Venturi float steam trap is an ideal choice for removal of condensate from process heating equipment such as tracing line, radiator, cylinder, dryer, heat exchanger, vessels, jacketing, Oven, heating tank etc. Venturi float steam traps find applications in various process industries such as Dairy, Fertilizers, Hotels, Hospitals Pharma, Textile, Automobile, Petro chemical, Paper mill, Sugar mill, processing unit, chemical.
