Home Products High Volume Steam Trap

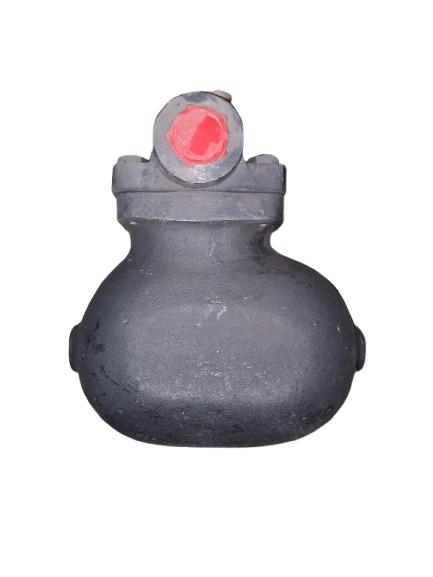

A High Volume Steam
A High Volume Steam
COD not available
Steam Trap by IEPL

High Volume Steam Trap

Share with
Share this on :

Description

Product details

A High Volume Steam Trap is an industrial steam system component designed to automatically remove large quantities of condensate, air, and other non-condensable gases from steam pipelines and process equipment while minimizing the loss of live steam. Innovative Enerpro Pvt. Ltd. provides industrial steam management solutions designed to support reliable condensate drainage, improve heat-transfer efficiency, and help industries optimize steam consumption. Our high-volume steam trap solutions are suitable for applications where efficient condensate removal and dependable steam system operation are essential. High condensate-handling capacity: Designed for applications requiring the removal of substantial quantities of condensate. Automatic condensate discharge: Helps drain accumulated condensate from steam systems. Steam conservation: Properly selected and maintained traps can help reduce unnecessary live-steam losses. Reliable industrial operation: Suitable for demanding industrial steam applications when correctly specified. Improved heat-transfer performance: Supports the removal of condensate from steam-heated equipment. Reduced waterlogging risk: Helps minimize condensate accumulation in pipelines and process equipment. Industrial-grade construction: Material and pressure ratings can be selected according to application requirements. FAQS: 1.What is a High Volume Steam Trap? A High Volume Steam Trap is a device designed to discharge large quantities of condensate from steam systems while retaining live steam under normal operating conditions. It is used in industrial applications where condensate loads are high. 2.How does a High Volume Steam Trap work? Its operating mechanism depends on the trap type. Thermodynamic, float-operated, inverted bucket, and other trap designs use different principles to distinguish condensate from live steam and discharge condensate automatically. The exact working principle depends on the selected model.
